DT-18 Gas Detector
Product Overview

DT-18 series gas alarm monitors are designed with stable sensors and the most advanced industrial microprocessor modules. It can be widely used in metallurgy, petroleum, fire-fighting, electric power, industrial and mining, municipal and refineries, chemical plants and other places prone to gas leakage. And these places for long-term uninterrupted monitoring, is to ensure personal safety and factory safety is an important monitoring instrument. The detector will be dangerous range of toxic gas concentration signal into a variety of industrial standard signal output, and can be used in conjunction with a variety of alarm host controllers produced by our company.

Basic parameter
DT-18 Gas Detector - Basic parameter
Technical Parameters
Detection Principle Electrochemical, NDIR Infrared, PID, Catalytic Combustion
Sensor Smart Sensor
Power Supply 24VDC
Maximum Power 60mA@24VDC
Output Signal (4-20)mA (default), RS485,CAN-BUS (optional)
Communication Protocol MODBUS or other protocols
Electrical Interface NPT3/4(internal)
Installation 2" riser/wall mounting
Load impedance 600Ω
Explosion-proof marking Exd IIC T6 Gb;ExtDA21 IP66 T80℃
IP Rating IP66
Ambient temperature -40℃~+70℃ (limit value)
Ambient temperature 0~95%RH (no condensation)
Ambient pressure 80kpa~106kpa
Display mode OLED display and Sound and light alarm indication
Shell material Die-casting aluminium
Weight <3.0kg
Overall dimensions 247 (L) × 222 (W) × 128 (H) mm
Connection cable 3-core shielded cable or 4-core shielded cable

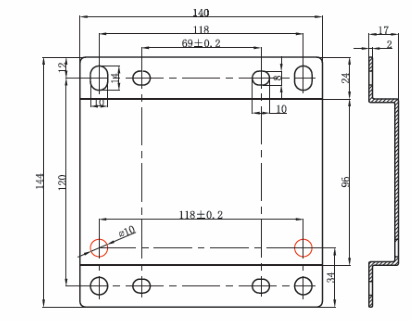

Mounting and mounting plate dimensions

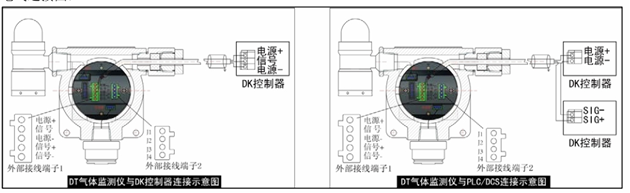

Electrical connection Diagram
