The company has developed this product in consideration of the high explosion-proof requirements of certain gas monitoring sites and the use of wet and harsh environment. Widely used in metallurgy, petroleum mining, oil refining, gas stations, oil pump room, chemical plants, pharmaceutical factories, food factories, flour mills and other flammable and explosive places.
| Technical Parameters | |
|---|---|
| Detection Principle | Electrochemical, Catalytic Combustion, PID, NDIR Infrared Sensor |
| Environmental humidity | 0～ 95%RH (no condensation) |
| Power supply | 220VAC±10% |
| Maximum power | 10W |
| Relay output | 2-way normally open and normally closed, capacity 3A (optional) |
| Cable Interface | G3/4 (inside) |
| Installation | Wall mounting |
| Load Impedance | 600Ω |
| Protection Class | IP66 |
| Explosion-proof symbol | Exd IIC T6 Gb;ExtDA21 IP66 T80℃ |
| Ambient Temperature | -40℃～ +70℃ ( Limit value ) |
| Sampling method | Diffusion |
| Display Mode | LED display and audible and visual alarm indication |
| Ambient Pressure | 80kpa ～ 106kpa |
| Casing material | carbon steel |
| Weight | <7.3kg |
| Overall Dimension | 348(H)×212(W)×83(Thick)mm; Mounting hole distance See drawing; Mounting hole Ф6 |
| Alarm range | Primary alarm: 0- full scale adjustable, secondary alarm: 0- full scale adjustable |
| Ambient Temperature | -40℃～ +70℃ ( limit value ) |
| Data transmission mode 1 | RS485 |
| Data transmission mode 2 | 4-20mA, Transmission distance>1000m |
| Data transmission mode 3 | Wireless(LoRa /2G/4G) |

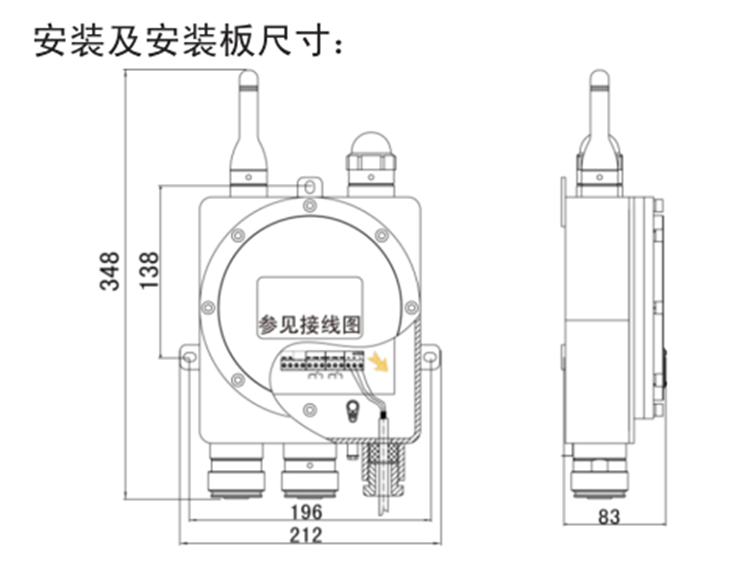

| The Mounting plate diagram |  |

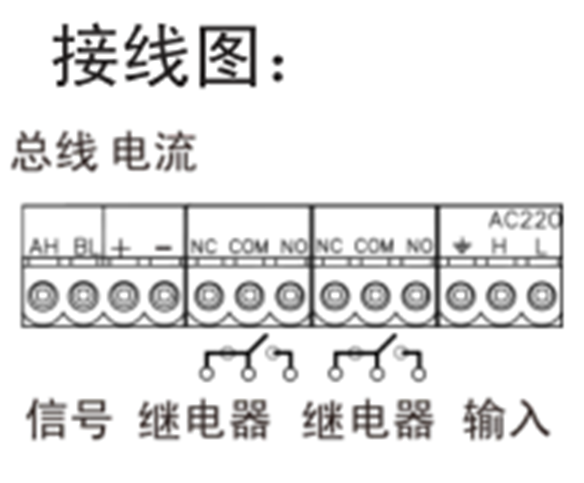

| Wiring Diagram |  |
